Satec Power Quality Analyzer PM180 is a high-performance device class 0.2s for active energy. It is certified by ONAC for conformity of IEC 62052-11:2003; IEC 62053-22:2003; IEC 62053-23:2003. In Colombia there are more than 120 OM180 installed and operative. The unique modular design of the PM180 ensures its adaptation to changing needs
Industrial Substation automation controller
- Digital Fault Recorder
- Waveform capture
- Harmonic Analyzer
- Automatic generation of the reports demanded by CREG 024 of 2005.
- Automatic generation of CS5, CS7 and CS8 reports demanded by SSPD
![Satec1](/images/Satec1.jpg)
The PM180 can have up to 3 expansions modules
Input and Output Module
- Digital Inputs module.
- Relay Outputs Module.
- Mixed Analog Inputs and Outputs module.
Communication Modules:
- IRIG-B Module
- TXFX Module.
- Cellular Module
Advanced measurement modules:
- Transient Recorder Module.
- Fault Recorder Module
- PMU + Transient Module
![Satec2](/images/Satec2.jpg)
ExpertPower is the software where you can see all the data information, waveform capture, power quality events and consumption information:
Energy consumption
Waveform capture
![Satec4](/images/Satec4.jpg)
Phasor Diagram
![Satec5](/images/Satec5.jpg)
Energy Distribution
![Satec6](/images/Satec6.jpg)
CBEMA Curve
![Satec7](/images/Satec7.jpg)
Curva SEMI F47
![](/images/Satec8.jpg)

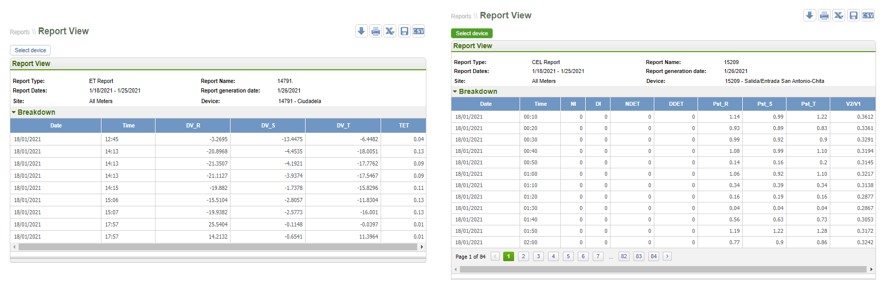

Regulatory Colombian Reports
![Satec9](/images/Satec9.jpg)
Heat Diagram
![Satec10](/images/Satec10.jpg)
![Satec logo](/images/Satec-logo.jpg)
SATEC is an Israeli Company founded in 1988, exports to over 40 countries worldwide throughout Europe, North and South America, Asia and Africa. Certified under ISO 9001 quality standard.
